Prime quality CRGO transformer Electrical steel supplier

                                       Varieties

Common type

High induction type

Domain refined high induction type

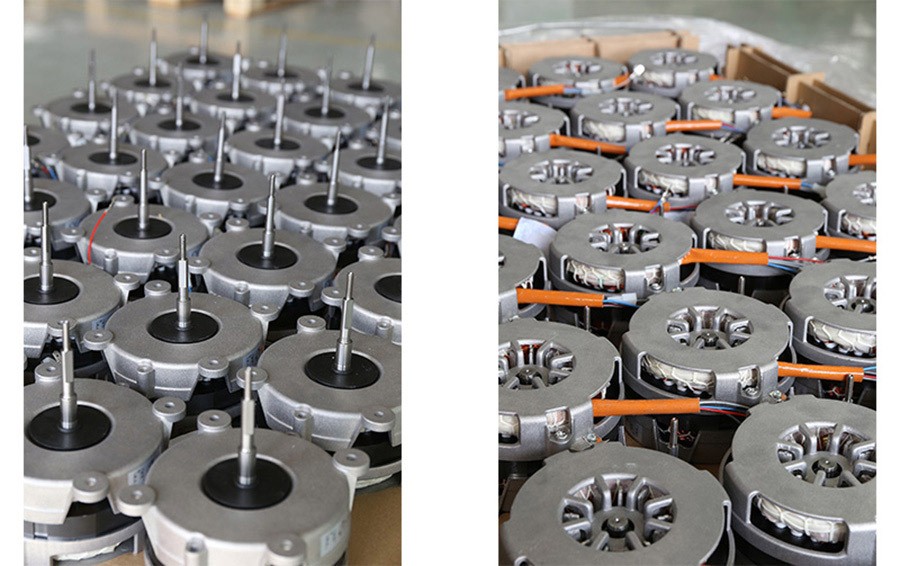

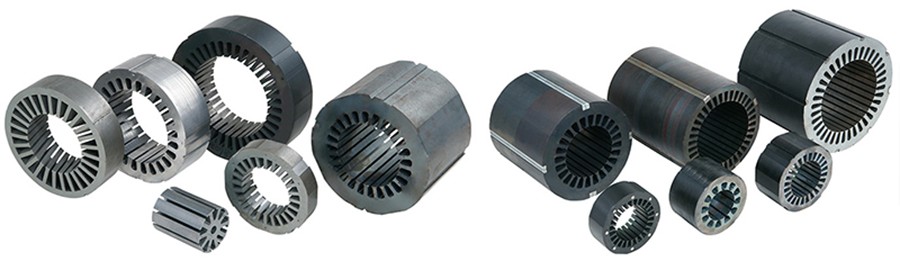

Large motors

*

*

Large transformers

*

*

*

Medium and small transformers

*

*

*

Distributing transformers

*

*

Voltage regulators

*

*

Reactor and magnetic amplifiers

*

*

*

IF transformers

*

Mutual inductors

*

*

TV transformers

*

*

Radio transformers

*

*

Radio broadcast transformers

*

        Item

GO Electrical steel

Available thickness(mm)

0.23 0.27 0.30 0.35

Available Width (mm)

800~1200 or customized

Inside Diameter(mm)

508

Weight

2~5T

Available thickness

(mm)

Thickness tolerance

(mm)

Transverse thickness tolerance

(mm)

Longitudinal thickness tolerance

(mm)

Width tolerance

(mm)

Flatness

(%)

Camber 2m

(mm)

0.23

±0.020

≤0.020

≤0.030

0~+2

≤1.5

≤1.0

0.27

±0.030

0.30

0.35

Type

Available thickness

(mm)

Grade

Density

(kg/dm³)

Max core loss

(W/kg)

Min. Magnetic induction

(T)

Common type

0.23

23SQ110

7.65

1.10

1.80

0.27

27SQ110

7.65

1.10

1.82

27SQ120

7.65

1.20

1.8

0.30

30SQ120

7.65

1.20

1.82

30SQ130

7.65

1.30

1.81

0.35

35SQ135

7.65

1.35

1.80

35SQ145

7.65

1.45

1.80

35SQ155

7.65

1.55

1.80

High magnetic induction type

0.23

22SQG085

7.65

0.85

1.87

23SQG090

7.65

0.90

1.87

23SQG095

7.65

0.95

1.87

0.27

27SQG090

7.65

0.90

1.89

27SQG95

7.65

0.95

1.89

27SQG100

7.65

1.00

1.89

0.30

30SQG100

7.65

1.00

1.89

30SQG105

7.65

1.05

1.89

30SQG110

7.65

1.10

1.89

30SQG120

7.65

1.20

1.89

0.35

35SQG115

7.65

1.15

1.89

35SQG125

7.65

1.25

1.89

35SQG135

7.65

1.35

1.89

Domain refined high magnetic induction type

0.23

23SQGD080

7.65

0.80

1.89

23SQGD085

7.65

0.85

1.89

23SQGD090

7.65

0.90

1.89

0.27

27SQGD085

7.65

0.85

1.89

27SQGD090

7.65

0.90

1.89

27SQGD095

7.65

0.95

1.89

0.30

30SQGD095

7.65

0.95

1.89

30SQGD100

7.65

1.00

1.89

30SQGD105

7.65

1.05

1.89

Type

Available thickness(mm)

Grade

Density

(kg/dm³)

Max core loss(W.kg)

Induction(T)

P15/50

P17/50

P15/60

P17/60

B8

B25

Common type

0.23

23SQ110

7.65

0.76

1.05

1.03

1.40

1.89

1.95

0.27

27SQ110

7.65

0..75

1.06

1.04

1.38

1.89

1.94

27SQ120

7.65

0.81

1.10

1.07

1.46

1.89

1.94

0.30

30SQ120

7.65

0.80

1.12

1.08

1.45

1.89

1.94

30SQ130

7.65

0.83

1.16

1.12

1.54

1.88

1.94

0.35

35SQ135

7.65

0.87

1.22

1.18

1.63

1.87

1.91

35SQ145

7.65

0.93

1.30

1.25

1.72

1.85

1.91

35SQ155

7.65

1.00

1.40

1.35

1.85

1.85

1.91

High magnetic induction type

0.23

22SQG085

7.65

0.62

0.83

0.80

1.09

1.91

1.95

23SQG090

7.65

0.64

0.87

0.84

1.13

1.91

1.95

23SQG095

7.65

0.65

0.90

0.87

1.17

1.91

1.95

0.27

27SQG090

7.65

0.64

0.88

0.86

1.16

1.91

1.96

27SQG95

7.65

0.67

0.92

0.89

1.21

1.91

1.95

27SQG100

7.65

0.69

0.95

0.92

1.25

1.90

1.95

0.30

30SQG100

7.65

0.71

0.97

0.93

1.28

1.91

1.96

30SQG105

7.65

0.73

1.00

0.96

1.30

1.91

1.95

30SQG110

7.65

0.74

1.0

0.97

1.32

1.91

1.95

30SQG120

7.65

0.75

1.04

0.99

1.34

1.91

1.95

0.35

35SQG115

7.65

0.83

1.11

1.09

1.50

1.90

1.95

35SQG125

7.65

0.89

1.22

1.18

1.60

1.90

1.94

35SQG135

7.65

0.96

1.32

1.27

1.72

1.90

1.94

Domain refined high magnetic induction type

0.23

23SQGD080

7.65

0.57

0.78

0.75

1.01

1.90

1.95

23SQGD085

7.65

0.60

0.82

0.79

1.07

1.90

1.95

23SQGD090

7.65

0.63

0.86

0.83

1.12

1.89

1.94

0.27

27SQGD085

7.65

0.61

0.83

0.81

1.13

1.90

1.95

27SQGD090

7.65

0..63

0.86

0.83

1.15

1.89

1.95

27SQGD095

7.65

0.66

0.90

0.87

1.18

1.89

1.94

0.30

30SQGD095

7.65

0.68

0.91

0.88

1.18

1.91

1.94

30SQGD100

7.65

0.70

0.95

0.92

1.26

1.91

1.94

30SQGD105

7.65

0.71

0.97

0.94

1.28

1.90

1.94

Item

Characteristic

Composing Component

Inorganic coating

Interlamination resistance

High interlamination resistance and excellent insulation

Adhesion

Fine adhesion,close combination of coating and substrate,unease to peel.

Lamination factor

uniform coating and high lamination factor make goof lamination effect.

Processability

Excellent stamping and welding ability

Heat resistance

The coating can withstand 800℃ stress relieving annealing in non-oxidation environment

Corrosion resistance

The coating can immune form the corrosion of insulating coil,mechanical oil, cooling coil,anti freezing oil and Freon.

Available thickness

(mm)

Hardness

(HV1)

Tensile strength

(MPa)

Yield strength

(MPa)

Elongation

(%)

Number of bends

Lamination factor

(%)

Adhesion

(grade)

0.23

198

350

330

12

21

96.5

B-C

0.27

200

355

332

12

21

97.0

B-C

0.30

204

359

334

13

21

97.0

B-C

0.35

204

362

342

13

21

97.5

B-C

Type

Thickness

(mm)

Shousteel

Baosteel

NSC

JFE

TKS

Posco

NI&SCO

AK

Common type

0.23

23SQ110

B23G110

C110-23

0.27

27SQ10

B27G120

27Z120

7JG120

C120-27

27PG120

NV27S-120

M-4

27Z130

27JG130

C130-27

27PG130

NV27S-130

M-4

C140-27

27PD140

NV27S-140

0.30

30SQ120

B30G120

30Z120

30JG120

30PG120

NV30S-120

30SQ130

B30G130

30Z130

30JG130

C130-30

30PG130

NV30S-130

30SQ140

B30G140

30Z140

30JG140

C140-30

30PG140

NV30S-140

M-5

C150-30

High magnetic induction type

0.27

27SQG090

B27P090

27ZH090

27PH095

27SQG095

B27P095

27ZH095

H095-27

27PH095

27SQG100

B27P100

27ZH100

27JGH100

H103-27

27PH100

NV27P-100

27ZH110

27JGH110

H-1

0.30

30SQG100

B30P100

30ZH100

30JGH100

H105-30

30PH100

30SQG105

B30P105

30ZH105

30JGH105

H111-30

30PH105

NV30P-105

30ZH110

30JGH110

30SQG120

B30P120

30ZH120

Domain refined high magnetic induction type

0.23

23SQGD080

B23R080

23ZDKH80

23PHD080

23SQGD085

B23R085

23ZDKH85

23PHD085

23SQGD090

B23R090

23ZDKH90

0.27

27SQGD085

27SQGD090

B27R090

27ZDKH90

27ZDMH90

27JGSD

H090-27

27PHD090

27SQGD095

B27R095

27ZDKH95

27ZDMH95

27JGSD95

27PHD095

H-1DR

0.30

30SQGD095

30SQGD100

30SQGD105
