Silicon Steel

Home Silicon Steel

ASTM standard Grain Oriented Electrical Steel Silicon Steel Coil supplier

Grain Oriented Electrical Steel is widely used in production of high demand motors and transformers, in forms of high conductivity and low iron lost, leading steel mills quality meets the international standard of ASTM/NSC, ect.

MOQ :
10T
Payment :
T/T LC at sight
Product Origin :
China
Shipping Port :
Guangzhou/ Shenzhen

Inquire Now

Product categories

New Products

Product Details

What is the main difference between oriented and non oriented silicon steel?

The difference between oriented silicon steel sheet and non-oriented silicon steel sheet: the internal structure is different, the grains of oriented silicon steel are basically in one direction, so it is called oriented, non-oriented silicon steel, the grain arrangement is disorderly, so the heat loss of oriented silicon steel is small, Non-oriented silicon steel has large heat loss. That is why grain oriented silicon steel could meet the high demanding processing requirement of transformers and rators.

Standard specification of GO silicon steel

Item	GO Electrical steel
Available thickness(mm)	0.23 0.27 0.30 0.35
Available Width (mm)	800~1200
Inside Diameter(mm)	508
Weight	2~5T

Note: Coil weight can be customized

Dimensional and shape tolerances( for reference)

Available thickness

(mm)

Thickness tolerance

(mm)

Transverse thickness tolerance

(mm)

Longitudinal thickness tolerance

(mm)

Width tolerance

(mm)

Flatness

(%)

Camber 2m

(mm)

0.23

±0.020

≤0.020

≤0.030

0~+2

≤1.5

≤1.0

0.27

±0.030

0.30

0.35

Application fields

Varieties	Common type	High induction type	Domain refined high induction type
Large motors	*	*
Large transformers	*	*	*
Medium and small transformers	*	*	*
Distributing transformers	*	*
Voltage regulators	*	*
Reactor and magnetic amplifiers	*	*	*
IF transformers		*
Mutual inductors	*	*
TV transformers	*	*
Radio transformers	*	*
Radio broadcast transformers		*

Typical Mechanical Properties(For reference)

Available thickness (mm)	Hardness (HV1)	Tensile strength (MPa)	Yield strength (MPa)	Elongation (%)	Number of bends	Lamination factor (%)	Adhesion (grade)
0.23	198	350	330	12	21	96.5	B-C
0.27	200	355	332	12	21	97.0	B-C
0.30	204	359	334	13	21	97.0	B-C
0.35	204	362	342	13	21	97.5	B-C

Cross reference of Designation(For reference)

We provide prime and reliable quality grain oriented silicon steel which meet the international standards.

Type	Thickness (mm)	Shousteel	Baosteel	NSC	JFE	TKS	Posco	NI&SCO	AK
Common type	0.23	23SQ110	B23G110			C110-23
	0.27	27SQ10	B27G120	27Z120	7JG120	C120-27	27PG120	NV27S-120	M-4
				27Z130	27JG130	C130-27	27PG130	NV27S-130	M-4
						C140-27	27PD140	NV27S-140
	0.30	30SQ120	B30G120	30Z120	30JG120		30PG120	NV30S-120
		30SQ130	B30G130	30Z130	30JG130	C130-30	30PG130	NV30S-130
		30SQ140	B30G140	30Z140	30JG140	C140-30	30PG140	NV30S-140	M-5
						C150-30
High magnetic induction type	0.27	27SQG090	B27P090	27ZH090			27PH095
		27SQG095	B27P095	27ZH095		H095-27	27PH095
		27SQG100	B27P100	27ZH100	27JGH100	H103-27	27PH100	NV27P-100
				27ZH110	27JGH110				H-1

	0.30	30SQG100	B30P100	30ZH100	30JGH100	H105-30	30PH100
		30SQG105	B30P105	30ZH105	30JGH105	H111-30	30PH105	NV30P-105
				30ZH110	30JGH110
		30SQG120	B30P120	30ZH120
Domain refined high magnetic induction type	0.23	23SQGD080	B23R080	23ZDKH80			23PHD080
		23SQGD085	B23R085	23ZDKH85			23PHD085
		23SQGD090	B23R090	23ZDKH90
	0.27	27SQGD085
		27SQGD090	B27R090	27ZDKH90 27ZDMH90	27JGSD	H090-27	27PHD090
		27SQGD095	B27R095	27ZDKH95 27ZDMH95	27JGSD95		27PHD095		H-1DR
	0.30	30SQGD095
		30SQGD100
		30SQGD105

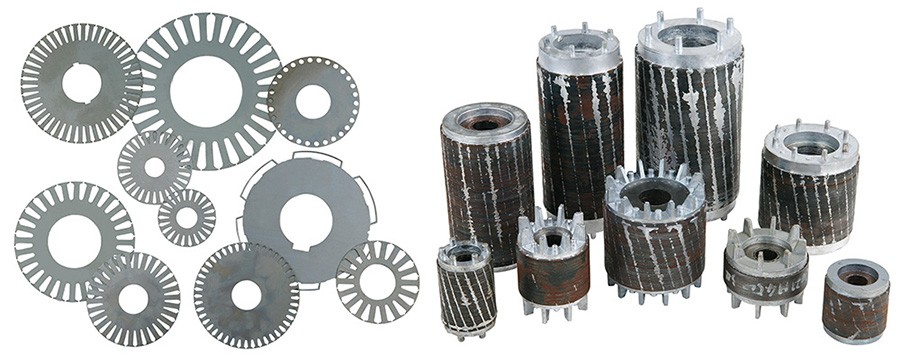

Application

Packing
