Prime quality wholesale oriented silicon steel

With the advantages such as high dimensional accuracy and high magnetic induction, cold rolled grain oriented silicon steel is widely used in different transformer manufacturing industries. Based on this prime quality silicon steel, Shunge provides customers with cost-effective wholesale price.

MOQ :
10T
Payment :
T/T, L/C at sight
Product Origin :
China
Shipping Port :
Shenzhen/Guangzhou

Inquire Now

Product categories

New Products

Product Details

Cold rolled grain oriented silicon steel, also known as cold rolled transformer steel, which has excellent properties such as high magnetic induction and low iron loss, is generally applied into manufacturing industries of all types of transformer cores.

Product Features

Low iron loss
Excellent adhesion
Low noise
Good consistency
Outstanding process-ability
Perfect dimensional accuracy

Standard specification

Item	GO Electrical steel
Available thickness (mm)	0.15、0.18、0.20、0.23、0.27、0.30
Available Width (mm)	900~1200
Inside Diameter (mm)	508
Weight (T)	2~5

Note: Coil weight can be customized.

Dimensional tolerances

Nominal thickness(mm)	Thickness tolerance(mm)	Transverse thickness tolerance(mm)	Longitudinal thickness tolerance(mm)	Width tolerance(mm)	Flatness (%)	Camber 2m(mm)
0.15	+0.008 -0.015	≤0.010	≤0.012	0~+0.5	≤1.0	≤0.8
0.18
0.20
0.23	+0.010 -0.020
0.27		≤0.012
0.30	+0.010 -0.025

Note:

1. Traverse thickness deviation refers to the thickness difference between the sheet center and 15mm from the edge.

2. The longitudinal thickness difference is the difference of the measured maximum thickness and the minimum thickness in the longitudinal direction at an arbitrary 2m length of steel on a arbitrary coil.

3. Please consult us if you have any special dimensional requirements.

Electromagnetic Properties

Electromagnetic Property Standard

Table 1 - Standard Electromagnetic Property Of High magnetic induction type

Nominal Thickness(mm)	Grade	Maximum total loss （W/kg）	Minimum magnetic polarization intensity J /T	Min Lamination factor
		Maximum total loss （W/kg）	50Hz / 60Hz
		P_1.7/50	J₈₀₀
0.18	18SQG075	0.75	1.89	0.955
	18SQG080	0.80	1.88	0.955
	18SQG085	0.85	1.88	0.955
	18SQG090	0.90	1.88	0.955
0.20	20SQG075	0.75	1.89	0.955
	20SQG080	0.80	1.89	0.955
	20SGQ085	0.85	1.88	0.955
	20SQG090	0.90	1.88	0.955
	20SQG095	0.95	1.88	0.955
0.23	23SQG080	0.80	1.89	0.955
	23SQG085	0.85	1.89	0.955
	23SQG090	0.90	1.89	0.955
	23SQG095	0.95	1.88	0.955
	23SQG100	1.00	1.88	0.955
0.27	27SQG090	0.90	1.89	0.960
	27SQG095	0.93	1.89	0.960
	27SQG100	0.96	1.89	0.960
	27SQG110	1.05	1.88	0.960
0.30	30SQG095	0.95	1.89	0.965
	30SQG100	0.98	1.89	0.965
	30SQG105	1.01	1.89	0.965
	30SQG120	1.05	1.88	0.965

Table 2 - Standard Electromagnetic Property of Domain refined type

Nominal Thickness(mm)	Grade	Maximum total loss （W/kg）	Minimum magnetic polarization intensity J /T	Min Lamination factor
		Maximum total loss （W/kg）	50Hz / 60Hz
		P_1.7/50	J₈₀₀
0.18	18SQGD060	0.60	1.88	0.955
	18SQGD065	0.65	1.88	0.955
	18SQGD070	0.70	1.88	0.955
	18SQGD075	0.75	1.88	0.955
0.20	20SQGD060	0.60	1.89	0.955
	20SQGD065	0.65	1.89	0.955
	20SQGD070	0.70	1.88	0.955
	20SQGD075	0.75	1.88	0.955
	20SQGD080	0.80	1.88	0.955
0.23	23SQGD070	0.70	1.89	0.955
	23SQGD075	0.75	1.89	0.955
	23SQGD080	0.80	1.89	0.955
	23SQGD085	0.85	1.88	0.955
	23SQGD090	0.90	1.88	0.955
0.27	27SQGD080	0.80	1.89	0.960
	27SQGD085	0.84	1.89	0.960
	27SQGD090	0.87	1.89	0.960
	27SQGD098	0.92	1.88	0.960
0.30	30SQGD090	0.90	1.89	0.965
	30SQGD095	0.92	1.89	0.965
	30SQGD100	0.96	1.89	0.965
	30SQGD105	1.00	1.88	0.965

Typical Electromagnetic Property

Table 1 - Typical Electromagnetic Property of High Magnetic Induction Type

Nominal Thickness (mm)	Grade	Maximum total loss （W/kg）				Minimum magnetic polarization intensity J /T	Min Lamination factor
		P_1.5/50 ^a	P_1.5/60 ^a	P_1.7/50	P_1.7/50 ^b	50Hz / 60Hz
		P_1.5/50 ^a	P_1.5/60 ^a	P_1.7/50	P_1.7/50 ^b	J₈₀₀
0.18	18SGQ075	0.55	0.73	0.74	0.96	1.90	0.955
	18SGQ080	0.58	0.76	0.79	1.02	1.90	0.955
	18SGQ085	0.61	0.79	0.83	1.08	1.89	0.955
	18SGQ090	0.64	0.85	0.87	1.19	1.88	0.955
0.20	20SGQ075	0.56	0.73	0.74	0.96	1.91	0.955
	20SGQ080	0.59	0.77	0.79	1.03	1.90	0.955
	20SGQ085	0.61	0.80	0.83	1.08	1.90	0.955
	20SGQ090	0.63	0.82	0.87	1.12	1.89	0.955
	20SGQ095	0.65	0.85	0.92	1.19	1.88	0.955
0.23	23SGQ080	0.60	0.79	0.80	1.05	1.92	0.955
	23SGQ085	0.62	0.81	0.83	1.09	1.92	0.955
	23SGQ090	0.64	0.84	0.85	1.12	1.91	0.955
	23SGQ095	0.66	0.86	0.88	1.16	1.91	0.955
	23SGQ100	0.67	0.88	0.92	1.21	1.91	0.955
0.27	27SGQ090	0.67	0.88	0.89	1.18	1.91	0.960
	27SGQ095	0.69	0.91	0.92	1.22	1.91	0.960
	27SGQ100	0.68	0.91	0.95	1.23	1.91	0.960
	27SGQ110	0.70	0.93	1.00	1.27	1.90	0.960
0.30	30SGQ095	0.72	0.96	0.95	1.26	1.92	0.965
	30SGQ100	0.73	0.98	0.97	1.29	1.92	0.965
	30SGQ105	0.74	0.99	1.00	1.30	1.91	0.965
	30SGQ120	0.77	0.99	1.04	1.36	1.91	0.965

Table 2 - Typical Electromagnetic Property of Domain Refined Type

Nominal Thickness (mm)	Grade	Maximum total loss （W/kg）				Minimum magnetic polarization intensity J /T	Min Lamination factor
		P_1.5/50 ^a	P_1.5/60 ^a	P_1.7/50	P_1.7/50 ^b	50Hz / 60Hz
		P_1.5/50 ^a	P_1.5/60 ^a	P_1.7/50	P_1.7/50 ^b	J₈₀₀
0.18	18SGQD060	0.44	0.58	0.59	0.77	1.91	0.955
	18SGQD065	0.46	0.62	0.64	0.83	1.91	0.955
	18SGQD070	0.49	0.65	0.68	0.90	1.90	0.955
	18SGQD075	0.52	0.67	0.73	0.93	1.88	0.955
0.20	20SGQD060	0.44	0.59	0.59	0.75	1.92	0.955
	20SGQD065	0.48	0.63	0.64	0.84	1.92	0.955
	20SGQD070	0.50	0.66	0.68	0.89	1.91	0.955
	20SGQD075	0.52	0.69	0.72	0.95	1.91	0.955
	20SGQD080	0.55	0.72	0.77	0.99	1.89	0.955
0.23	23SGQD070	0.53	0.71	0.70	0.93	1.92	0.955
	23SGQD075	0.55	0.73	0.73	0.97	1.92	0.955
	23SGQD080	0.56	0.75	0.75	1.01	1.92	0.955
	23SGQD085	0.59	0.78	0.80	1.04	1.91	0.955
	23SGQD090	0.62	0.81	0.85	1.11	1.90	0.955
0.27	27SGQD080	0.61	0.80	0.80	1.06	1.91	0.960
	27SGQD085	0.62	0.82	0.83	1.10	1.91	0.960
	27SGQD090	0.62	0.84	0.85	1.12	1.91	0.960
	27SGQD095	0.64	0.87	0.90	1.16	1.90	0.960
0.30	30SGQD090	0.67	0.90	0.90	1.19	1.91	0.965
	30SGQD095	0.69	0.92	0.91	1.22	1.91	0.965
	30SGQD0100	0.71	0.92	0.95	1.23	1.90	0.965
	30SGQD0105	0.73	0.97	0.98	1.28	1.89	0.965

Table 3 - Typical Electromagnetic Property of Low noise Type

Nominal Thickness (mm)	Grade	Maximum total loss （W/kg）				Minimum magnetic polarization intensity J /T	Min Lamination factor
		P_1.5/50 ^a	P_1.5/60 ^a	P_1.7/50	P_1.7/50 ^b	50Hz / 60Hz
		P_1.5/50 ^a	P_1.5/60 ^a	P_1.7/50	P_1.7/50 ^b	J₈₀₀
0.20	20SQGD070LN	0.50	0.66	0.68	0.89	1.91	0.955
0.20	20SQGD075LN	0.52	0.69	0.72	0.95	1.91	0.955
0.23	23SQGD080LN	0.56	0.75	0.75	1.01	1.93	0.955
0.23	23SQGD085LN	0.59	0.78	0.80	1.04	1.92	0.955
0.27	27SQGD085LN	0.62	0.82	0.83	1.10	1.91	0.960
0.27	27SQGD090LN	0.62	0.84	0.85	1.12	1.91	0.960
0.30	30SQGD100LN	0.71	0.93	0.95	1.23	1.91	0.965
Note: Noise series is 2-4db(A) lower than that of conventional steel strip.

Table 4 - Typical Electromagnetic Property of Low Excitation Type

Nominal Thickness (mm)	Grade	Maximum total loss （W/kg）				Minimum magnetic polarization intensity J /T	Min Lamination factor
		P_1.5/50 ^a	P_1.5/60 ^a	P_1.7/50	P_1.7/50 ^b	50Hz / 60Hz
		P_1.5/50 ^a	P_1.5/60 ^a	P_1.7/50	P_1.7/50 ^b	J₈₀₀
0.20	20SQGD070LS	0.50	0.66	0.68	0.89	1.91	0.955
0.20	20SQGD075LS	0.52	0.69	0.72	0.95	1.91	0.955
0.23	23SQGD080LS	0.57	0.76	0.76	1.02	1.92	0.955
0.23	23SQGD085LS	0.59	0.78	0.80	1.04	1.91	0.955
Note: The exciting power is 20% lower than that of conventional steel strip.

Table 5 - Typical Electromagnetic Property of No Substrate Type

Nominal Thickness (mm)	Grade	Maximum total loss （W/kg）				Minimum magnetic polarization intensity J /T	Min Lamination factor
		P_1.5/50 ^a	P_1.5/60 ^a	P_1.7/50	P_1.7/50 ^b	50Hz / 60Hz
		P_1.5/50 ^a	P_1.5/60 ^a	P_1.7/50	P_1.7/50 ^b	J₈₀₀
0.27	27SQG120NG	0.93	1.21	1.20	1.57	1.90	0.960
0.30	30SQG130NG	0.96	1.23	1.30	1.69	1.90	0.960

Table 6 - Typical Electromagnetic Property of Intermediate Frequency Type

Nominal Thickness (mm)	Grade	Maximum total loss （W/kg）		Minimum magnetic polarization intensity J /T	Min Lamination factor
		P_1.5/50 ^a	P_1.5/60 ^a	50Hz / 60Hz
		P_1.5/50 ^a	P_1.5/60 ^a	J₈₀₀
0.15	15SQF1300	/	13	1.75	0.940
0.15	15SQF1600	/	15	1.75	0.940
0.18	18SQF1700	/	16	1.75	0.950
0.20	20SQF760	7.5	/	1.80	0.950

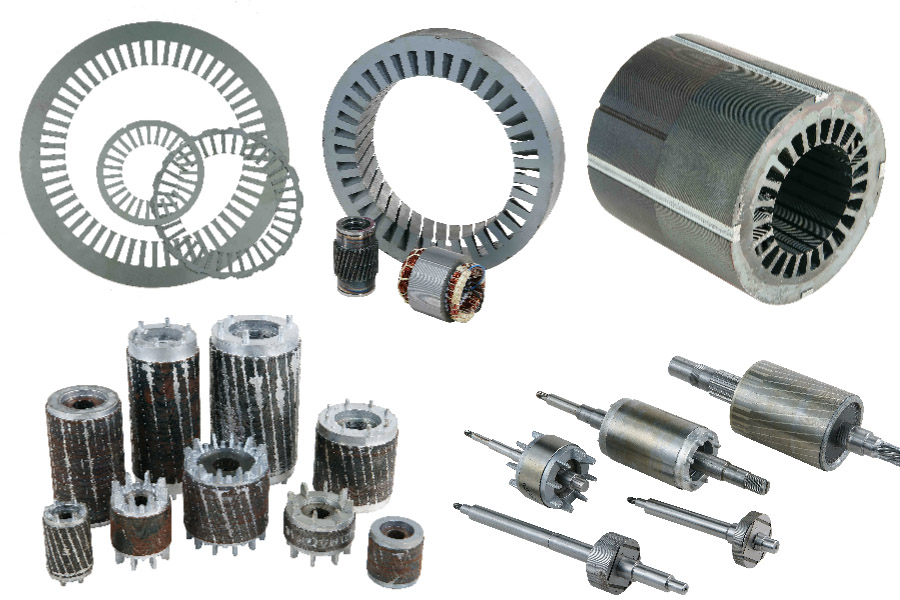

Application fields

Varieties	High magnetic induction type	Domain refined type
Large transformers	*	*
Medium and small transformers	*	*
Distributing transformers	*	*
Large motors	*
Medium motors
Voltage regulator	*
Reactor and magnetic amplifiers	*	*
IF transformer	*
Mutual instructors	*
transformer	*

Packing

Hot Tags : oriented silicon steel grain oriented silicon steel electrical steel Prime quality transformer steel
