Product Origin :
ChinaShipping Port :
Shenzhen/GuangzhouPayment :
T/T, L/C at sightSmall submersible pump -- SGP series
We manufacture most of the state-of-the-art stainless steel pumps that are popular in nowadays market and have patent rights for some designs. Since we are the A-level silicon steel distribitor of SHOUSTEEL which got the most advance production line in China and it is the best choice of making the most essential parts of pumps---the motors. From the smallest parts of the core to other parts, all the way down to the final product, we control every step of the production and warmly welcome OEM orders.

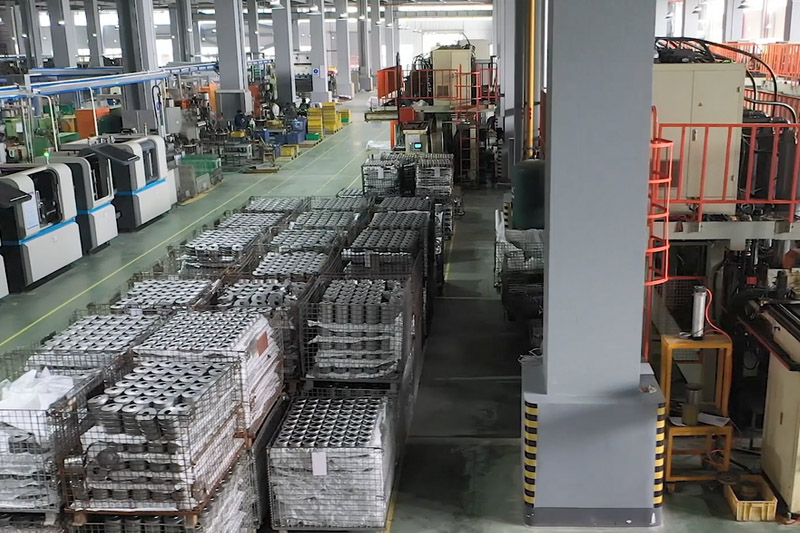

Stainless steel parts production line

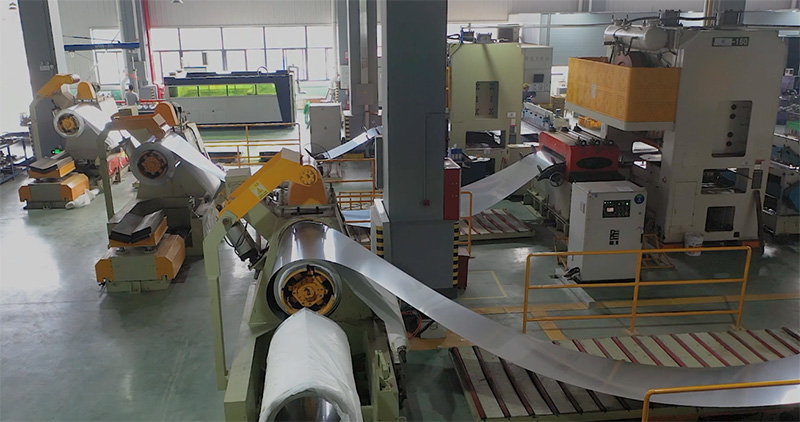

Decoiling line for steel coil
 |
 |
high lamination semi-finished product stator
professional automatic stator winding line

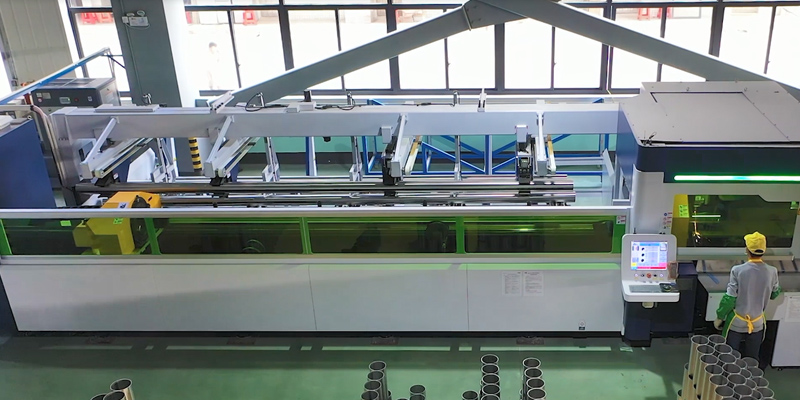

Seamless pipe cutting line

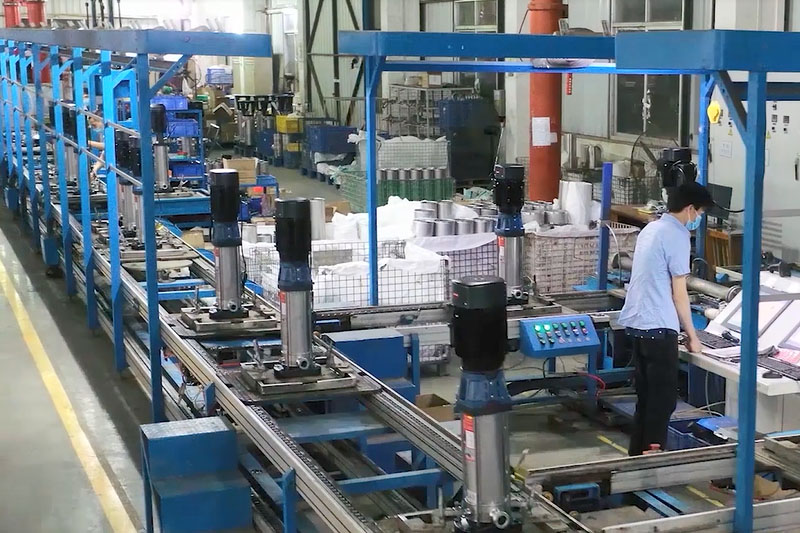

Assembling workshop
 |
 |
 |
final finished to product -- all types of stainless steel electric pumps
Other than strictly monitoring the production line, we also pay full attention to the quality control and quality test.
Water-injection quality test before packaging

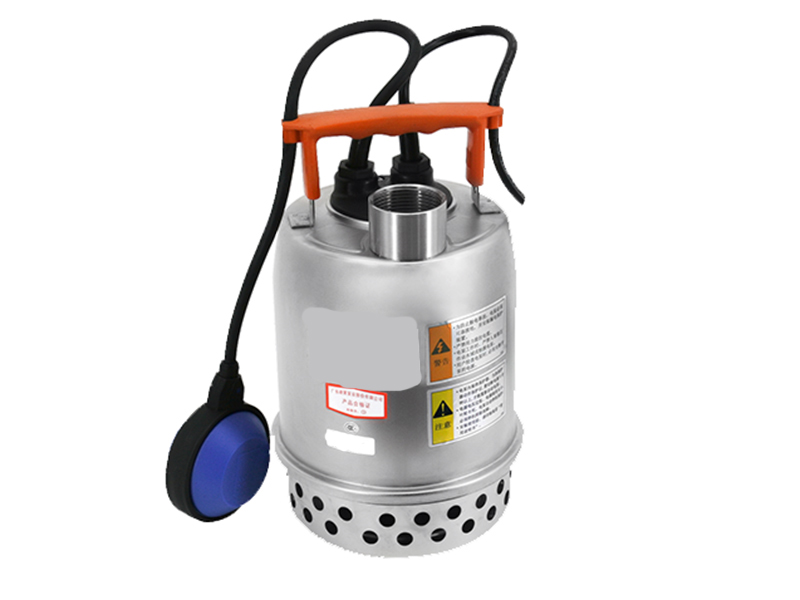

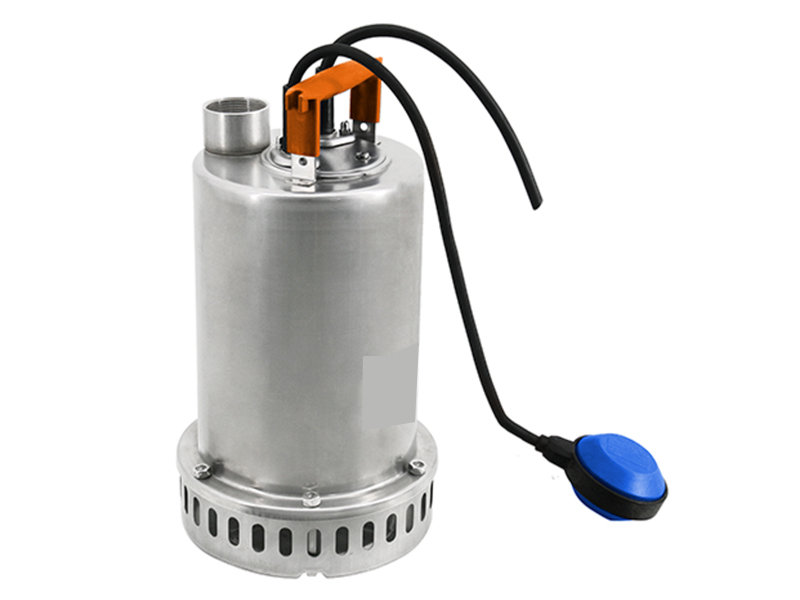

Product photos
 |
 |
Working conditions
Medium temperature: 0~40℃
The diving depth should be less than: 5m
Technical parameter list FOR SGP SERIES
|
Model |
Power(P2) kW |
(Amps) 220V/ 50Hz |
Hmax (m) |
Qmax (m3/h) |
Outlet |
G.W. (kg) |
Packing size (mm) |
|
SGP45 |
0.25 |
1.9 |
7.5 |
9 |
G1.25” |
5.5 |
215x185x325 |
|
SGP55 |
0.37 |
2.4 |
11 |
13 |
G1.5” |
9.6 |
425x260x300 |
|
SGP75 |
0.55 |
3.8 |
13.5 |
15 |
G1.5” |
9.8 |
425x260x300 |
|
SGP100 |
0.75 |
5.2 |
15 |
16.5 |
G1.5” |
10.5 |
425x260x300 |
|
SGP150 |
1.1 |
7.0 |
18 |
18 |
G1.5” |
12 |
420x260x300 |
|
SGP200 |
1.5 |
9.2 |
19 |
20 |
G1.5” |
13 |
420x260x300 |

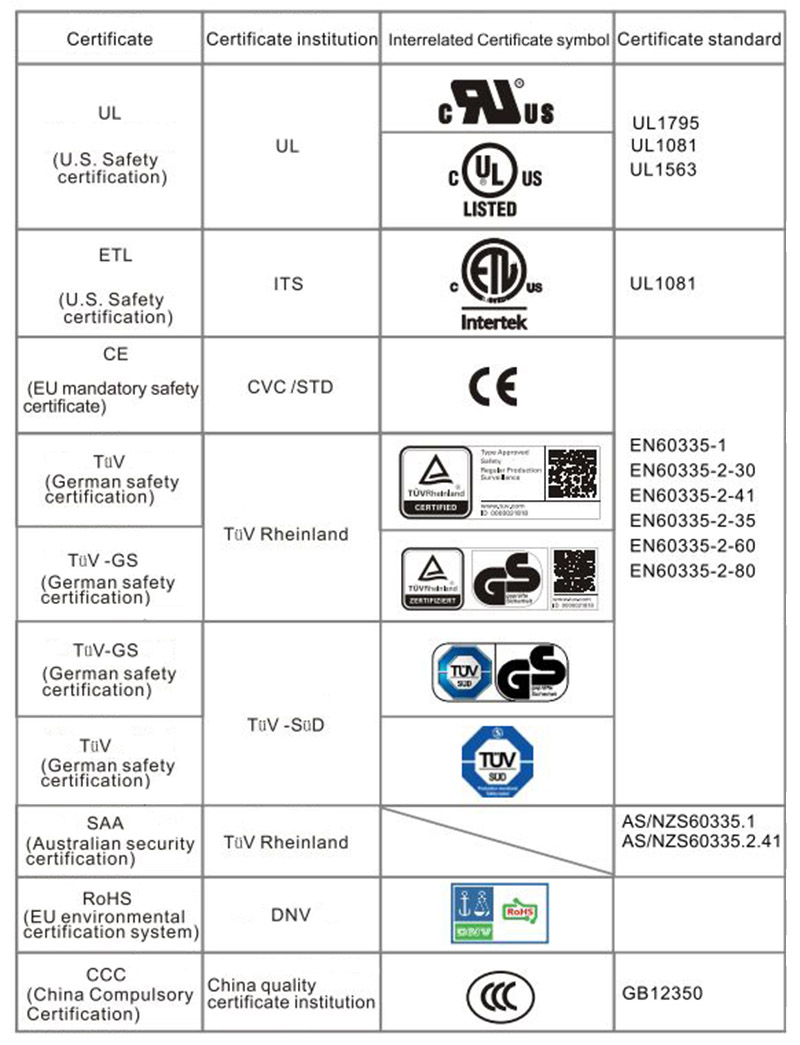

Certification
Application
Suitable for clean water, sewage.
Farming, forestry, fishery water supply, circulation, and water changing.
Equipment for Gardening, Aquarium, Landscape waterfall, Water drainage and filtration.
Shunge has a huge range of stainless steel products for your options. Detail information including specification or usage will be appreciated which will speed up the quotation process.
