Our swimming pool pump is not only generally used in indoor or outdoor swimming pool, but it's also used for home usage/ mariculture and so on. Having passed a few certifications, we're confident in meeting your need with our products of high standard and excellent quality.
Product Origin :
ChinaShipping Port :
Shenzhen/GuangzhouPayment :

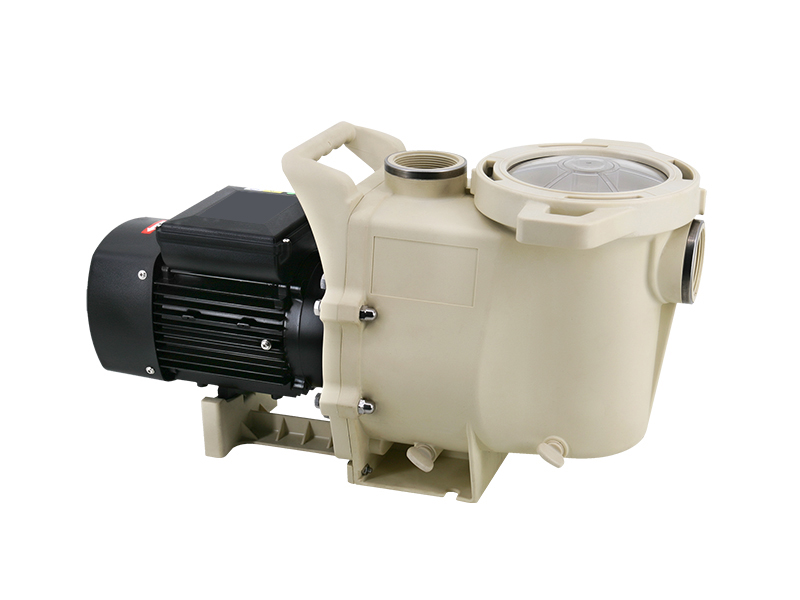

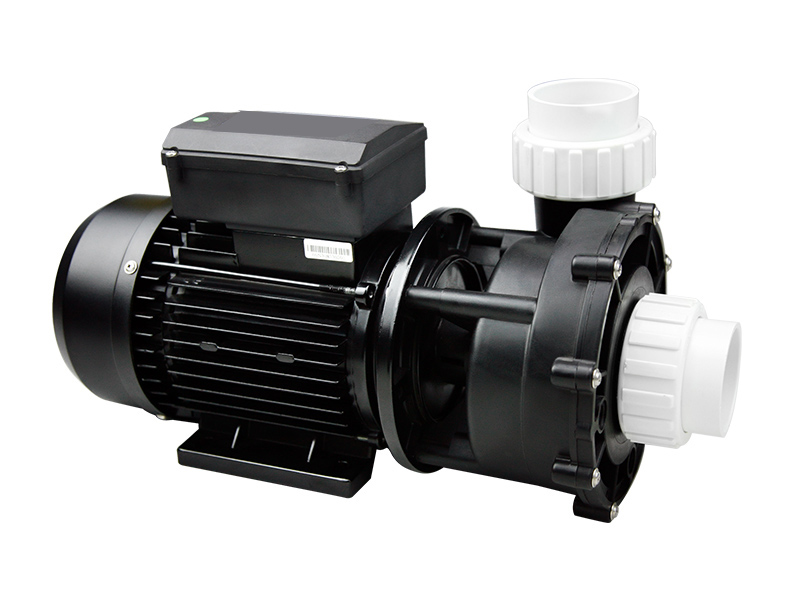

T/T, L/C at sightSwimming pool pump -- SGW

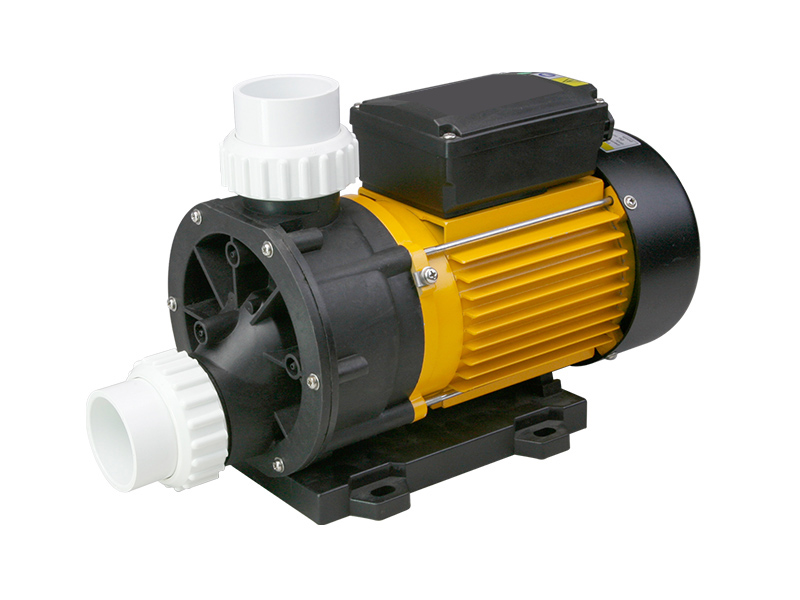

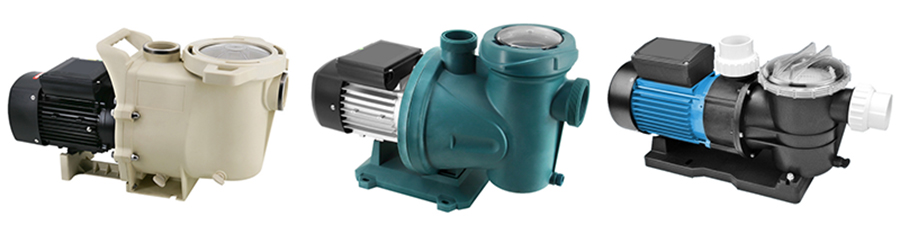

Shunge has abundant platstic pumps of market-leading quality, with international certifications and confident in covering most of customer's demands. You wouldn't wanna miss our hot selling types such as bathtub pumps, SPA pumps, circulating pumps, swimming pool pump,etc. To satisfy your need, we support customized colours and properties for your preference and warmly welcome OEM orders.
Our plastic electric pumps are manufactured from an excellent system:

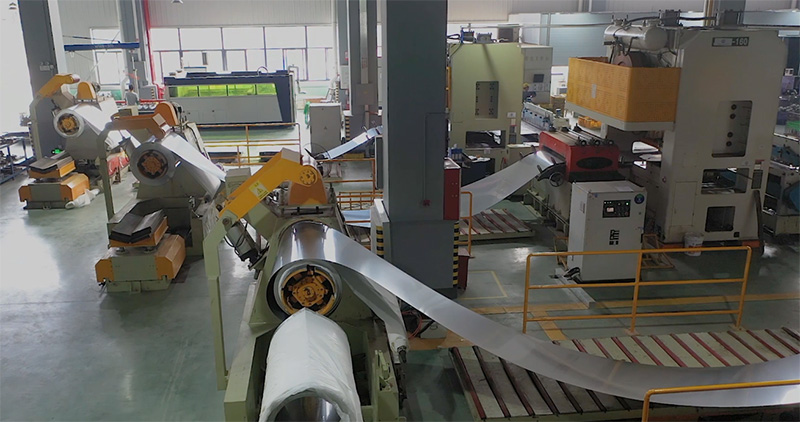

silicon steel raw material provided by Shunge Steel
 |
 |

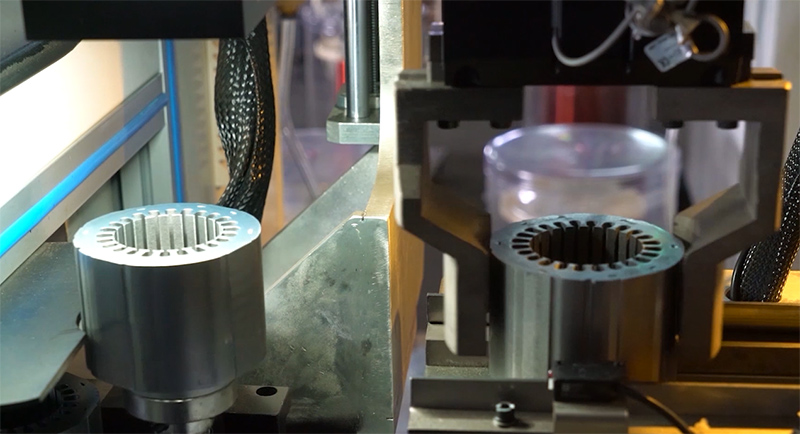

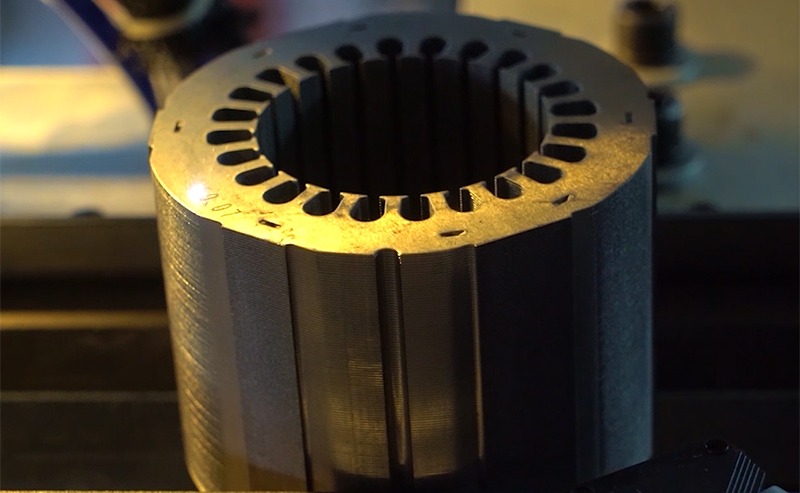

high lamination semi-finished product stator

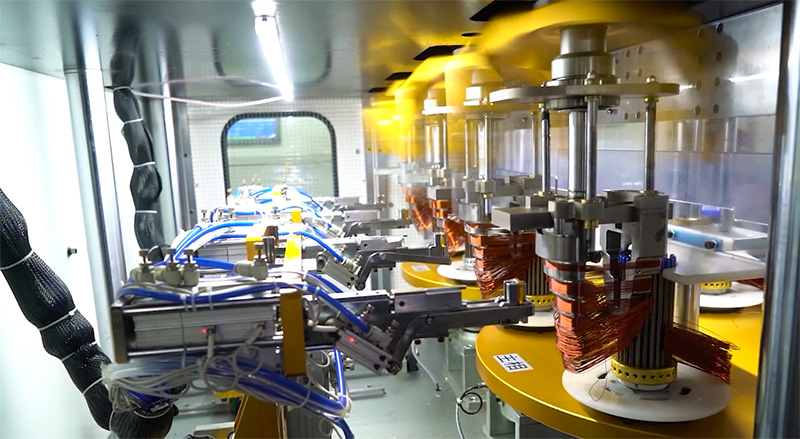

professional automatic stator winding line

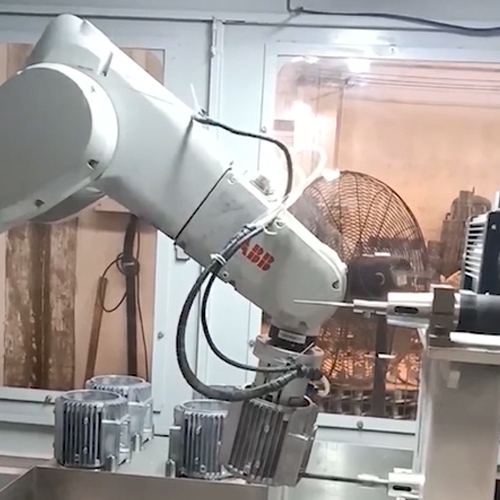

unmanned engine base assembling workshop

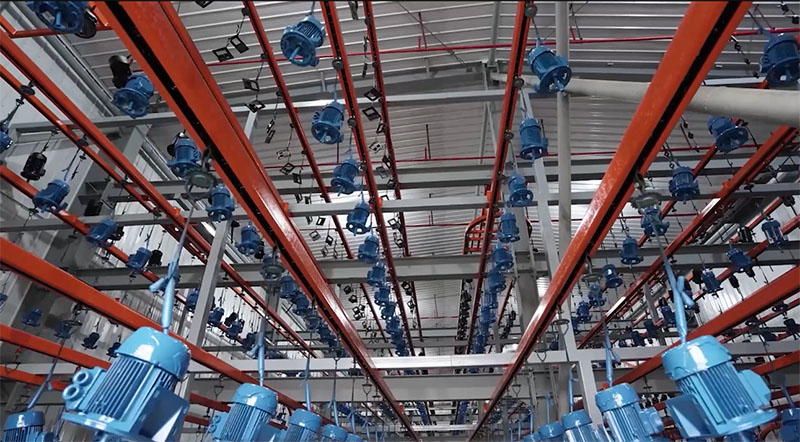

personalised colour paint spraying line

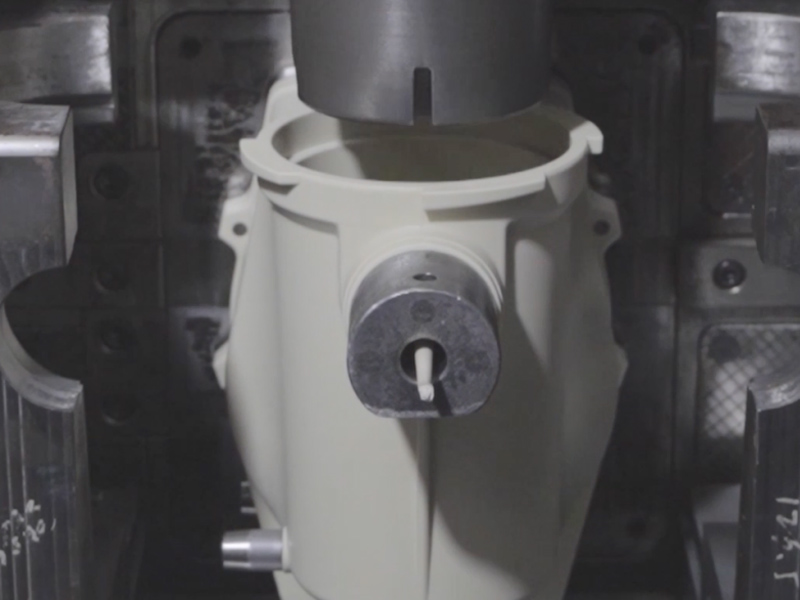

injection molding workshop
final finished to product -- various multi-functional plastic electric pumps
Other than strictly monitoring the production line, we also pay full attention to the quality control and quality test.

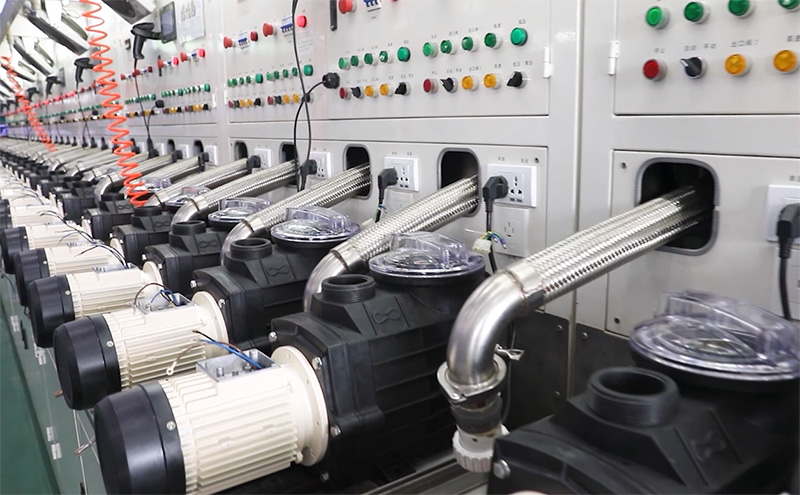

Water-injection quality test before packaging
--- SGW series ---

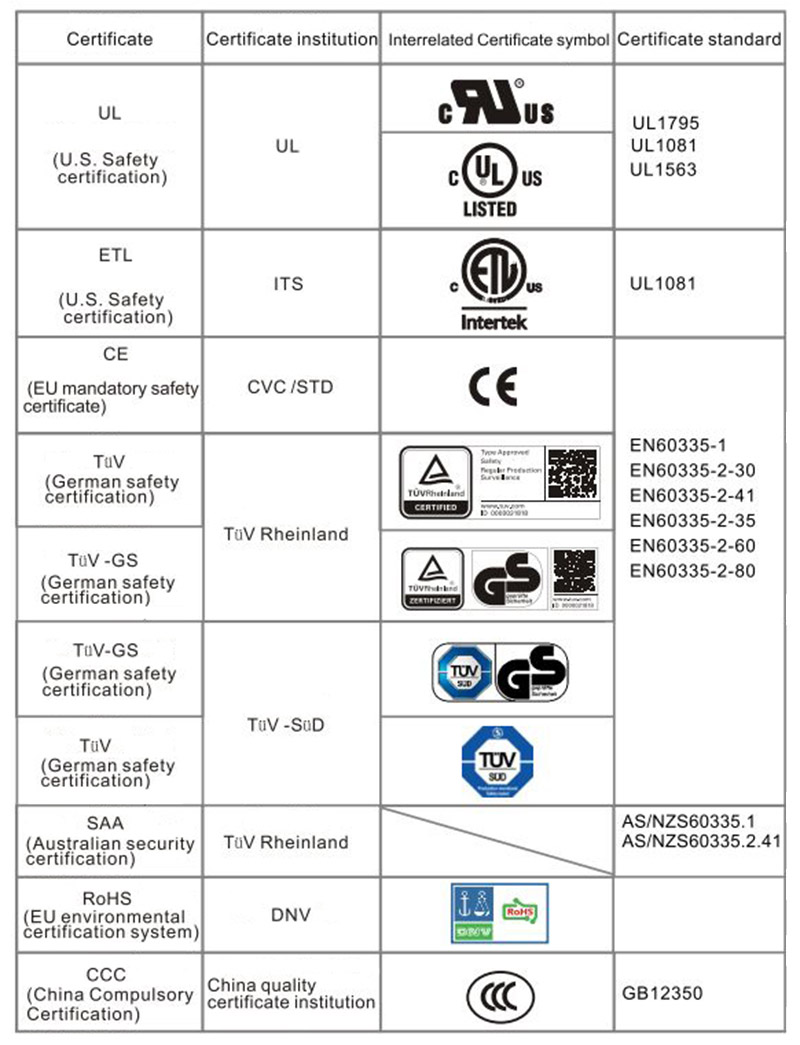

Certification
TUVRheinland CERTIFIED ID: 1419052985
GS
CE
Working conditions
Medium temperature: 5~50℃
Environmental temperature: <=50℃
Max. Working pressure: 0.3MPa
Technical parameter list FOR SGW SERIES
|
Model |
Qmax (l/min) |
Hmax (m) |
Curves |
Power(P1) |
V/Hz |
(Amps) |
Fitting size (mm) |
G.W. (kg) |
Packing size (mm) |
|
|
kW |
HP |
|||||||||
|
SGW B075 |
285 |
12 |
1 |
0.55 |
0.75 |
220-240/50 |
3.2 |
60.3 or 63 |
14.6 |
645x295x400 |
|
SGW B100 |
315 |
15 |
2 |
0.75 |
1.0 |
220-240/50 |
3.8 |
60.3 or 63 |
15.5 |
645x295x400 |
|
SGW B120 |
335 |
17 |
3 |
0.9 |
1.2 |
220-240/50 |
4.6 |
60.3 or 63 |
16.3 |
645x295x400 |
|
SGW B150 |
400 |
19 |
4 |
1.1 |
1.5 |
220-240/50 |
5.2 |
60.3 or 63 |
17.3 |
645x295x400 |
|
SGW B200 |
480 |
21 |
5 |
1.5 |
2.0 |
220-240/50 |
7.0 |
60.3 or 63 |
18.3 |
645x295x400 |
|
SGW B250 |
530 |
21 |
6 |
1.85 |
2.5 |
220-240/50 |
8.6 |
60.3 or 63 |
20.4 |
645x295x400 |
|
SGW B300 |
550 |
22 |
7 |
2.2 |
3.0 |
220-240/50 |
10 |
60.3 or 63 |
21.6 |
645x295x400 |
|
SGW A150-I |
400 |
19 |
4 |
1.1 |
1.5 |
220-240/50 |
5.2 |
60.3 or 63 |
18.6 |
680x295x400 |
|
SGW A200-I |
480 |
21 |
5 |
1.5 |
2.0 |
220-240/50 |
7.0 |
60.3 or 63 |
19.7 |
680x295x400 |
|
SGW A250-I |
530 |
21 |
6 |
1.85 |
2.5 |
220-240/50 |
8.6 |
60.3 or 63 |
21 |
680x295x400 |
|
SGW A300-I |
550 |
22 |
7 |
2.2 |
3.0 |
220-240/50 |
10 |
60.3 or 63 |
22.6 |
680x295x400 |
|
SGW A400-I |
600 |
23 |
8 |
3.0 |
4.0 |
220-240/50 |
14 |
60.3 or 63 |
24.3 |
680x295x400 |
|
SGW A150-II |
400 |
19 |
4 |
(High speed) 1.1 |
1.5 |
220-240/50 |
5.2 |
60.3 or 63 |
20 |
680x295x400 |
|
200 |
4 |
9 |
(Low spped) 0.3 |
3/8 |
220-240/50 |
2.2 |
60.3 or 63 |
680x295x400 |
||
|
SGW A200-II |
480 |
21 |
5 |
(High speed) 1.5 |
2.0 |
220-240/50 |
7.0 |
60.3 or 63 |
21 |
680x295x400 |
|
215 |
4.5 |
10 |
(Low spped) 0.35 |
3/8 |
220-240/50 |
2.4 |
60.3 or 63 |
680x295x400 |
||
|
SGW A250-II |
530 |
21 |
6 |
(High speed) 1.85 |
2.5 |
220-240/50 |
8.6 |
60.3 or 63 |
22.5 |
680x295x400 |
|
230 |
5 |
11 |
(Low spped) 0.4 |
1/2 |
220-240/50 |
2.8 |
60.3 or 63 |
680x295x400 |
||
|
SGW A300-II |
550 |
22 |
7 |
(High speed) 2.2 |
3.0 |
220-240/50 |
10 |
60.3 or 63 |
24.5 |
680x295x400 |
|
250 |
5.5 |
12 |
(Low spped) 0.45 |
5/8 |
220-240/50 |
3.2 |
60.3 or 63 |
680x295x400 |
||
Application

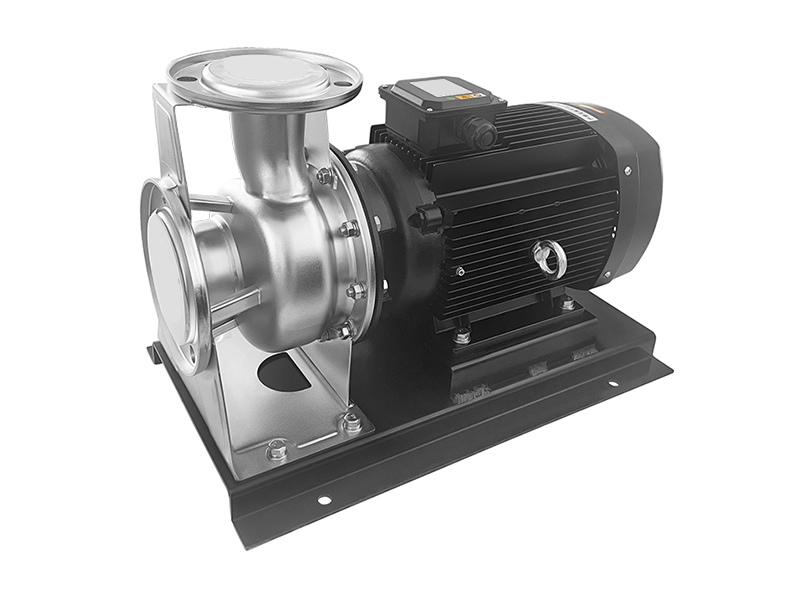

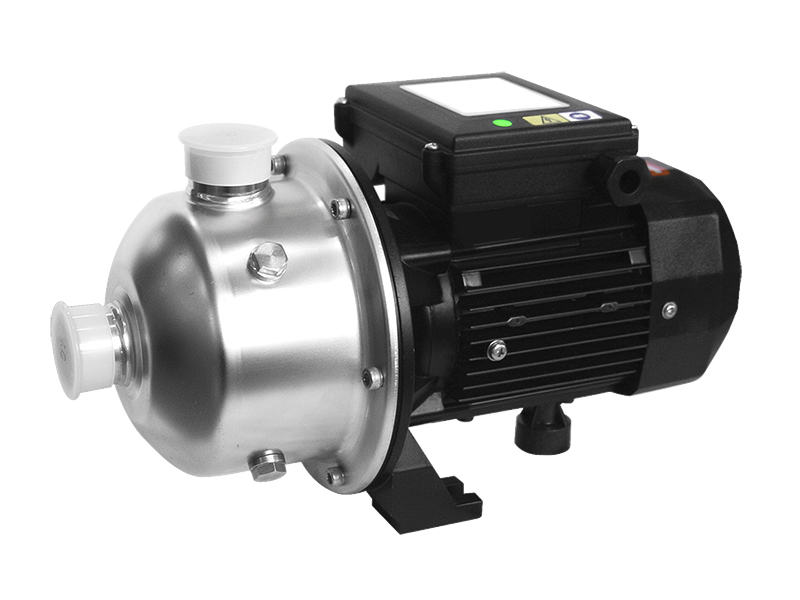

Shunge has a huge range of stainless steel products for your options. Detail information including specification or usage will be appreciated which will speed up the quotation process.
