Low iron loss wholesale CRNGO motor lamination steel

With professional manufacturing and strict quality control, lamination steel with low iron loss saves producers time and money for motors, generators and transformers. Shunge is your reliable solution provider and advanced steel supplier who offers well-rounded one-stop service from raw material to finished product.

MOQ :
10T
Payment :
T/T LC at sight
Product Origin :
China
Shipping Port :
Guangzhou/ Shenzhen

Inquire Now

Product categories

New Products

Product Details

Cold rolled non-grain oriented silicon steel (CRNGO) is special alloy which contains certain amounts of carbon and silicon. After deforming and annealing, it shows excellent characteristics that could be applied into generator manufacturing.

Product Description (For reference)

Product Name	Cold Rolled Grain NON-Oriented Silicon Steel
Thickness	0.20mm-0.50mm
Width	20mm-1250mm or as required
Length	Coil Or As Required
Technique	Cold Rolled
Surface Treatment	Coated

Advantages

1. low iron loss

2. high magnetic induction

3. uniform thickness

4. good punchability

5. small thickness deviation

6. stable performance

7. high lamination coefficient

8. outstanding welding performance

9. good corrosion resistance

10. good freon resistance

Product Series

Product series	Main specification	Features
High efficient series	0.35mm 0.50mm	Lower core loss and higher magnetic induction than concentional products
Stress relief annealing series	0.35mm 0.50mm	Low core loss, high magnetic induction and good machinablity after annealing

* Contact us for more series and further information.

Standard Value of Electromagnetic Property - High efficient series, Stress relief annealing series

High Efficient Series

Grade	Nominal Thickness （mm）	Theoretical Density （kg/dm³）	Core Loss （W/kg）	Magnetic Induction （T）
Grade	Nominal Thickness （mm）	Theoretical Density （kg/dm³）	P_15/50	B₅₀
35SWH250	0.35	7.65	2.40	1.69
50SWH470	0.50	7.70	3.05	1.72
50SWG470	0.50	7.75	3.15	1.73
50SWH600	0.50	7.75	3.60	1.74
50SWH800	0.50	7.80	4.50	1.76
50SWH1300	0.50	7.85	5.60	1.78

Stress Relief Annealing Series

Grade	Nominal Thickness （mm）	Theoretical Density （kg/dm³）	Core Loss （W/kg）	Magnetic Induction （T）
Grade	Nominal Thickness （mm）	Theoretical Density （kg/dm³）	P_15/50	B₅₀
35SWR300	0.35	7.80	2.8	1.75
35SWR350	0.50	7.80	3.2	1.76
35SWR450	0.50	7.85	4.2	1.74

Note:

a.The Above Measurement is according to GB/T2521.1-2016.

b.The number of the transverse and vertical test samples are the same.

c.The magnetic properties of stress relief annealing products are only for tested at 750°C with 2 hours annealing.

d.P15/50 is the core loss with 1.5T and 50Hz. P10/400 is the core loss with 1.0T and 400Hz

e.B50 is the magnetic induction with 5000A/m.

Grade Table (For reference)

Type	Thickness (mm)	Shousteel	NSC	JFE	TKS	Posco	NI&Sco	AK
General series	0.35	35SW230	35H230	35JN230	M235-35A	35PN230
		35SW250	35H250	35JN250	M250-35A	35PN250	2413	M-15
		35SW270	35H270	35JN270	M270-35A	35PN270	2412	M-19
		35SW300	35H300	35JN300	M300-35A	35PN300	2411	M-22/M-27
		35SW360	35H360	35JN360		35PN360
		35SW440	35H440	35JN440		35PN455
		35SW550				35PN560
	0.5	50SW230	50H230	50JN230	M230-50A	50PN230
		50SW250	50H250	50JN250	M250-50A	50PN250
		50SW270	50H270	50JN270	M270-50A	50PN270	2414
		50SW290	50H290	50JN290	M290-50A	50PN290	2413	M-15
		50SW310	50H310	50JN310	M310-50A	50PN310	2412	M-19
		50SW350	50H350	50JN350	M350-50A	50PN350		M-22
		50SW400			M400-65A	50PN400		M-27/M-36
		50SW470	50H470	50JN470	M470-50A	50PN445	2214
		50SW600	50H600	50JN600	M600-50A	50PN595	2212
		50SW700	50H700	50JN700	M700-50A	50PN760		M-47
		50SW800	50H800	50JN800	M800-50A	50PN890	2011
		50SW1000	50H1000	50JN1000	M940-50A	50PN1015
		50SW1300	50H1300	50JN1300	M1100-50A	50PN1270
	0.65	65SSW800		65JN800	M800-65A	65PN890		M-47
		65SW1000		65JN1000	M1000-65A	65PN1015
		65SW1300		65JN1300	M1300-65A	65PN1270
High efficient series	0.5	50SWH470		50JNE470
		50SWH600
		50SWH800
		50SWH1000
Stress relief annealing series	0.35	35SWR300
Stress relief annealing series	0.5	50SW350		50JNA350
New energy vehicle strip series	0.3	30SW2700
	0.27	27SW2300
	0.2	20SW1500	20HTH1500	20JNEH1500

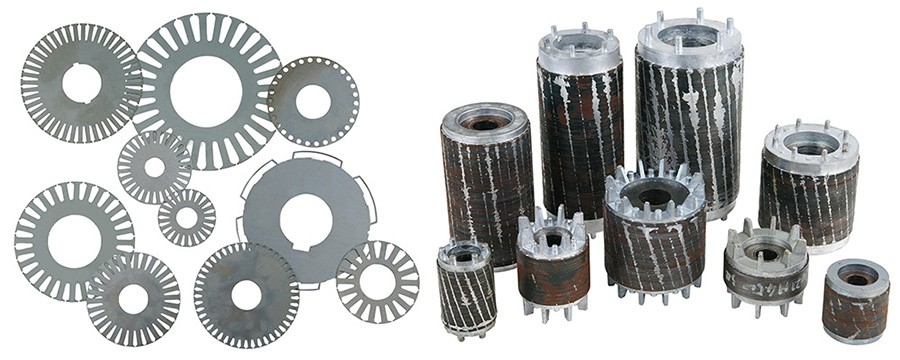

Applications

Silicon steel is generally used for generator manufacturing or transfromer core producing and so on. Shunge tries its best to meet your requirement with different forms of steel from China's leading manufacturers.

CRNGO

CRNGO silicon steel

Packing

* Our steel could be in different forms of coils, plates, sheets, wires and so on. Packing is different due to products forms.

Hot Tags : Low iron loss motor lamination steel cold rolled Non Grain Oriented silicon Steel CRNGO silicon steel supplier motor lamination steel manufacturer
